HLD Photo Sharing App Instagram

Functional vs. Non-Functional Requirements

Functional Requirements

1. Feeds
2. Create Post
3. List Post
4. Reels, Create Reels
5. Story, Create Story
6. Browse, Filter
7. Messaging
8. Like, Comments
9. Edit Features
10. Profile & Followers

Non-Functional Requirements

1. Security & Privacy Features
2. Desktop vs. Mobile: Device Support
3. Authentication
4. SEO
5. Optimization
6. Accessibility
7. Offline Support
8. Testing
9. i18n / l10n (Internationalization & Localization)
10. Deployment

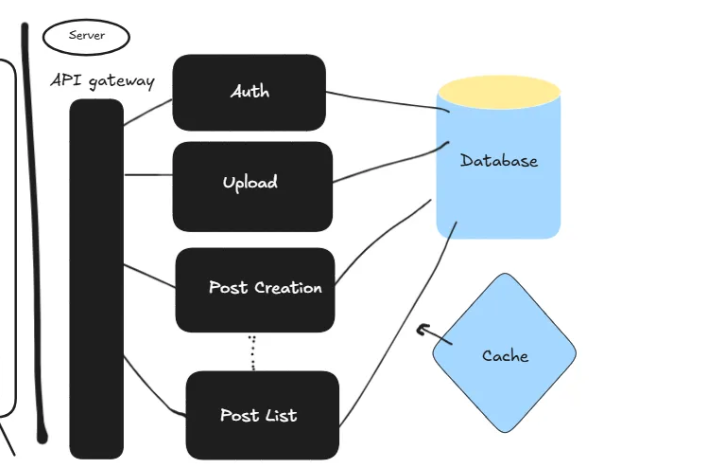

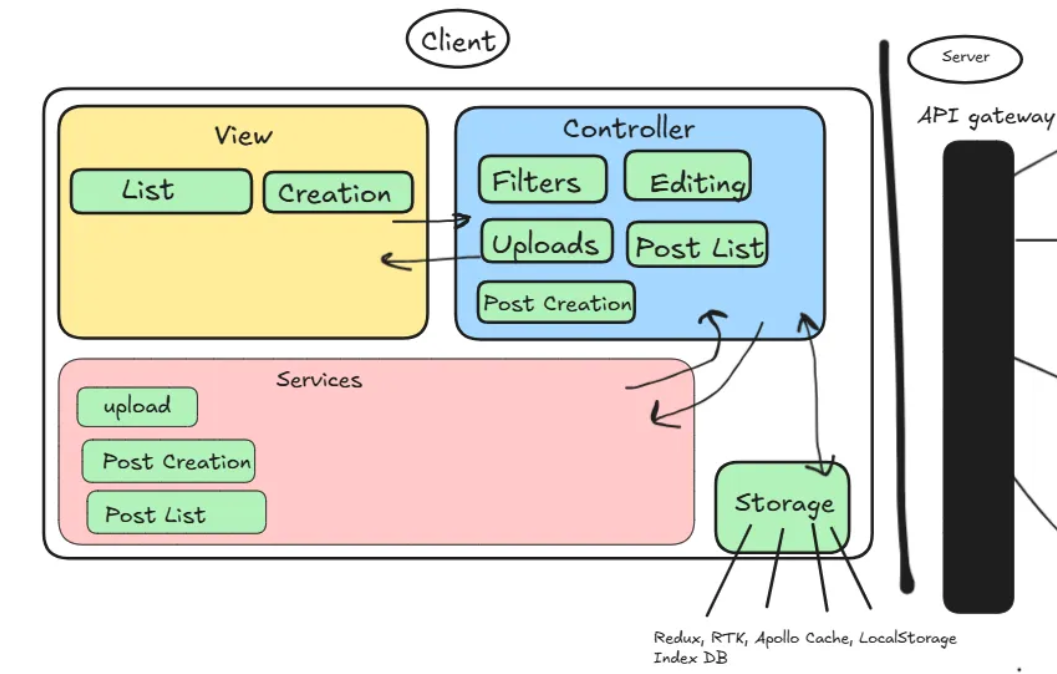

Architecture Design

Architecture is not about folder or component structure. Start with a high-level server and client design and overall system architecture.

🚫 Avoid framework or language-specific discussions.

✅ Focus on concepts like MVC, client-server interactions, and data flow

Component Architecture

1. Feed List: Comment Section, Add Comments
2. Feed Creation: Comment, Caption, User Details, Post Body
3. Media: Image or Video Component

Data Models

• Post Data: id, caption, createdAt, updatedAt, userId, mediaIds[]
• Feed List: postIds[], totalPosts
• User Data: id, name, profilePhotoUrl
• Media: id, type (image/video)

API Endpoints

• /feedList: pageNo, size (GET) → Response structure & frontend data usage discussion
• /create-post: Create post, upload media

Optimization

Asset Optimization

• Image formats: WebP/SVGs
• srcset, userAgent, DPR (Device Pixel Ratio)
• Device connectivity, prefetch images

Feed Optimization

• SSR (Above-the-fold strategies)
• Lazy Loading
• Infinite Scroll (Virtualization, Intersection Observer)
• Code Splitting
• Loading Shimmers
• Preserving Feed State
• Web Workers
• Optimistic Updates

Implementation

Image Editing

• Crop, Resizing, Filters using Canvas API or CSS Filters
• Try online CSS filter tools for testing and familiarity

File Upload

• HTTPS POST

  • multipart/form-data
  • Base64 encoding
  • Multi-selection
  • File Chunking
